Laney Digbeth DB500H

Amplified Low Head

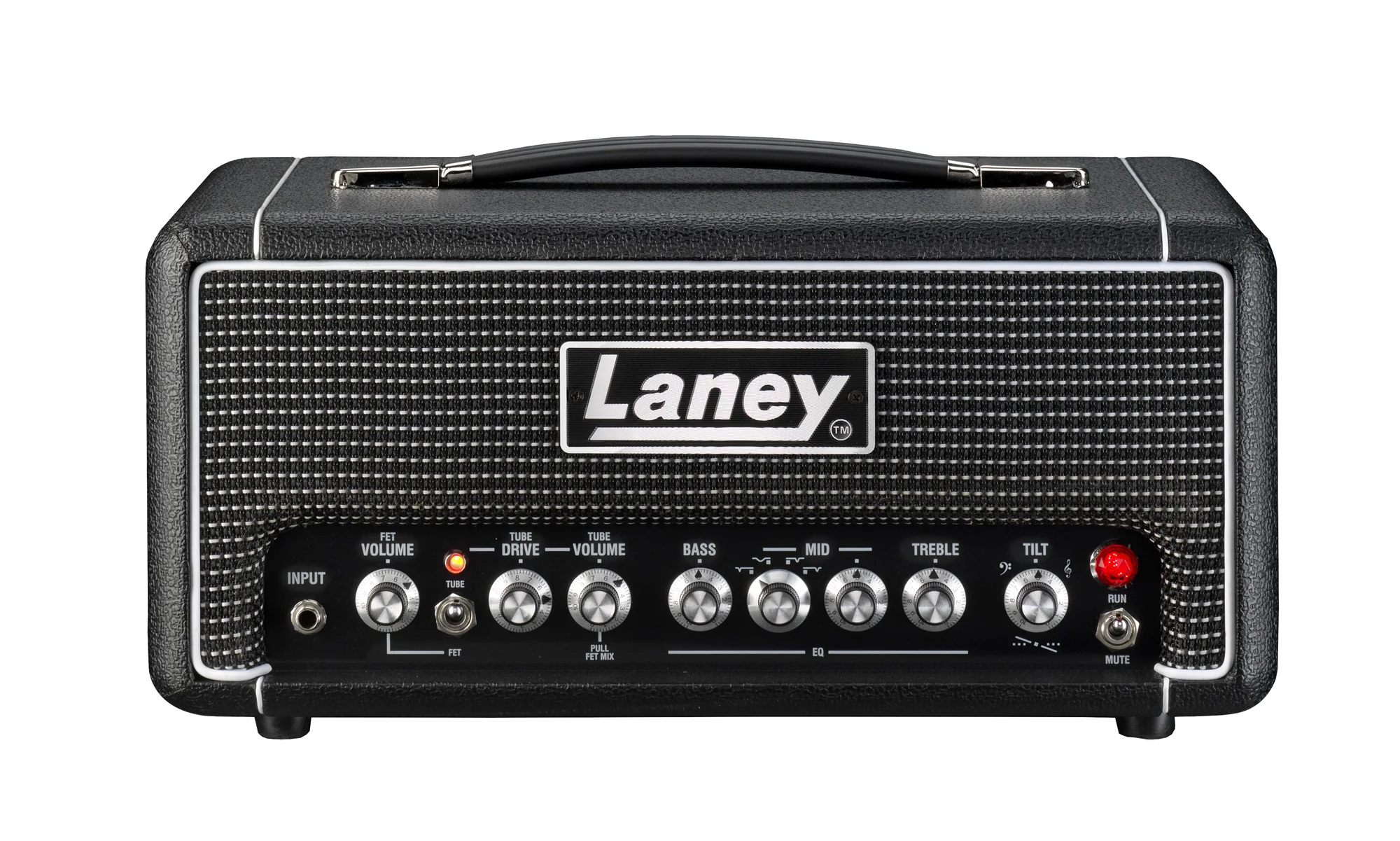

The Laney Digbeth DB500H is a powered bass head offering 500W of Class D power. It combines a hybrid tube and transistor preamp, with two channels and a 3-band EQ incorporating 4 selectable mid-range curves, as well as a TILT function for precise tonal adjustment.

• ✓ 500W Class D amplification
• ✓ Hybrid tube and transistor pre-amplification

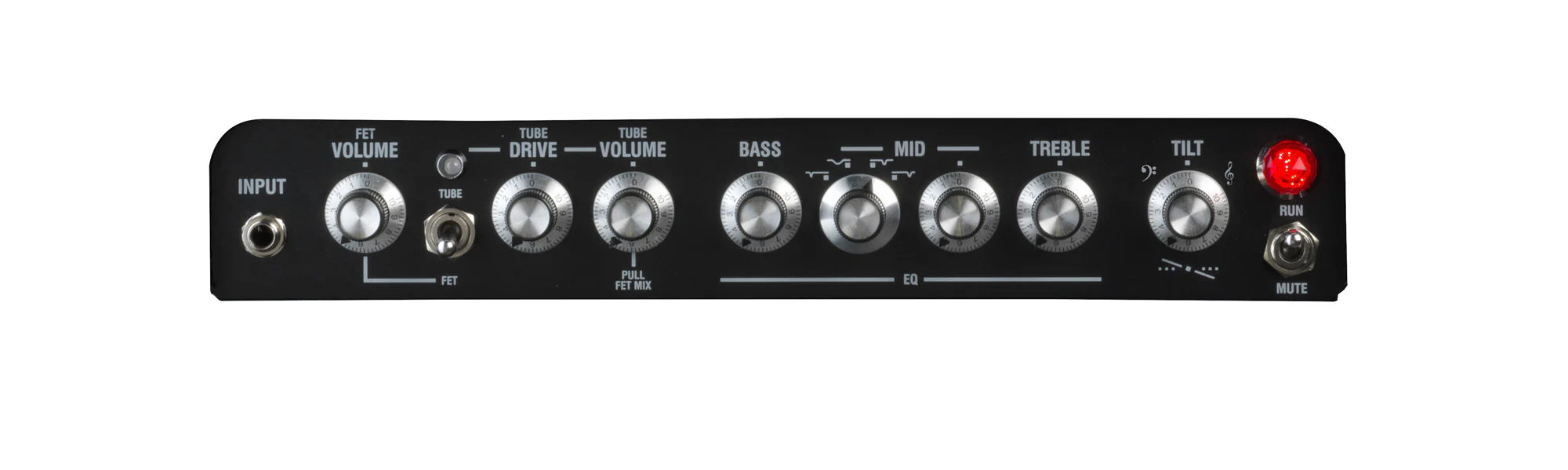

• ✓ 2 channels with 3-band EQ and 4 mid-range curves

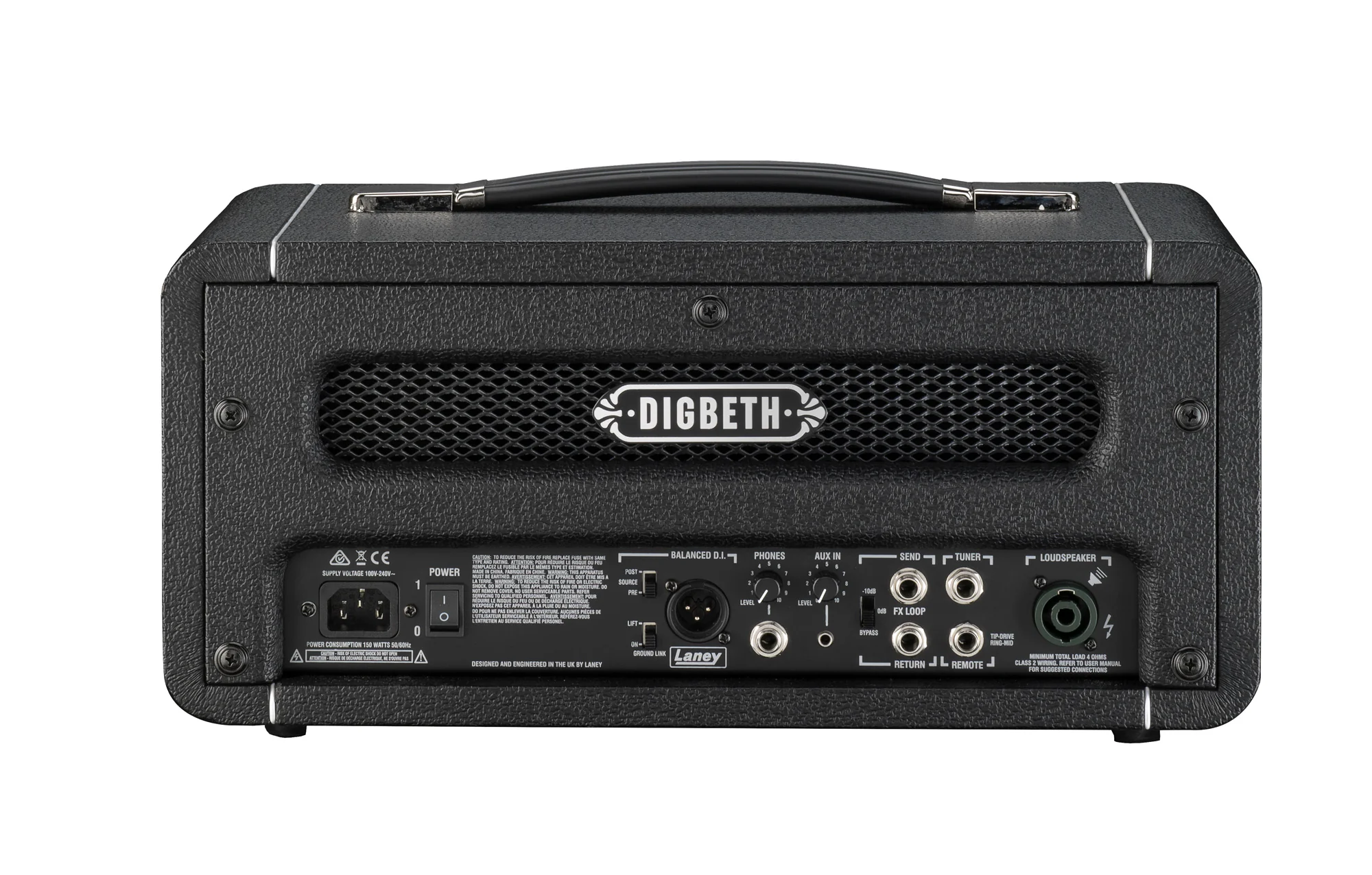

• ✓ XLR Pro DI output (pre/post EQ) and effects loop
• ✓ 3.5 mm auxiliary input and 6.35 mm headphone output with volume control
• ✓ Tuner output and Speakon/Jack combo output
• ✓ Optional FS2-MINI footswitch

Technical data

Power	500W Class D
Pre-amplification	Tube and transistor
Number of channels	2
Equalizer	3 bands with 4 selectable midrange curves
Features	TILT function, effects loop, tuner output
Outings	DI Pro XLR (pre/post EQ), 6.35 mm headphone jack, Speakon/Jack combo jack
Auxiliary input	3.5 mm with volume control
Control	Headphone volume control, optional FS2-MINI footswitch
Dimensions	42 x 22 x 20.5 cm
Weight	7.1 kg

Uses & Benefits

• Versatile sound thanks to hybrid pre-amplification and advanced equalizer
• High power suitable for professional configurations
• Full connectivity for easy integration in the studio or on stage
• Precise sound control with TILT function and various settings
• Compact and lightweight design for easy transport
• Option to use the footswitch for remote control
