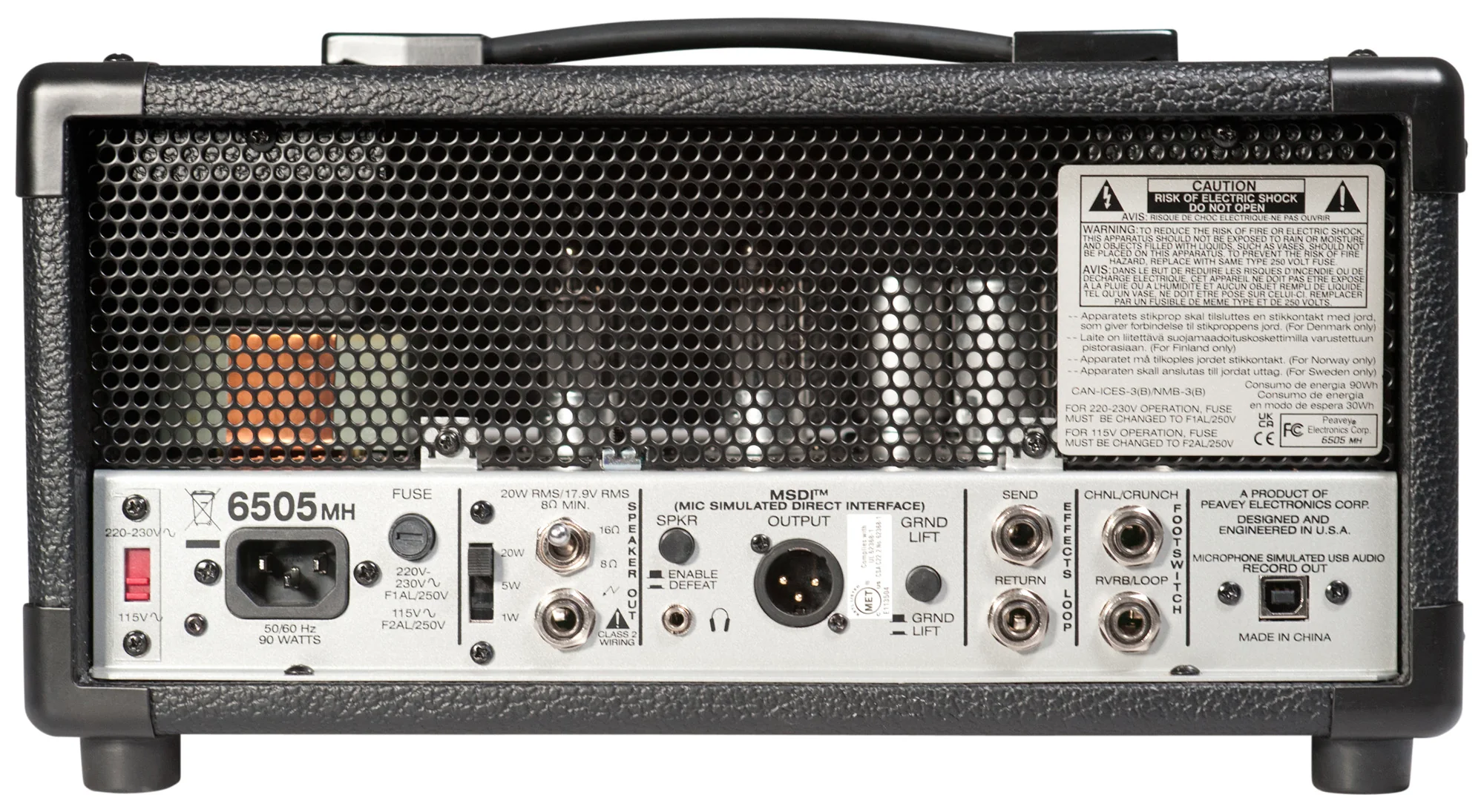

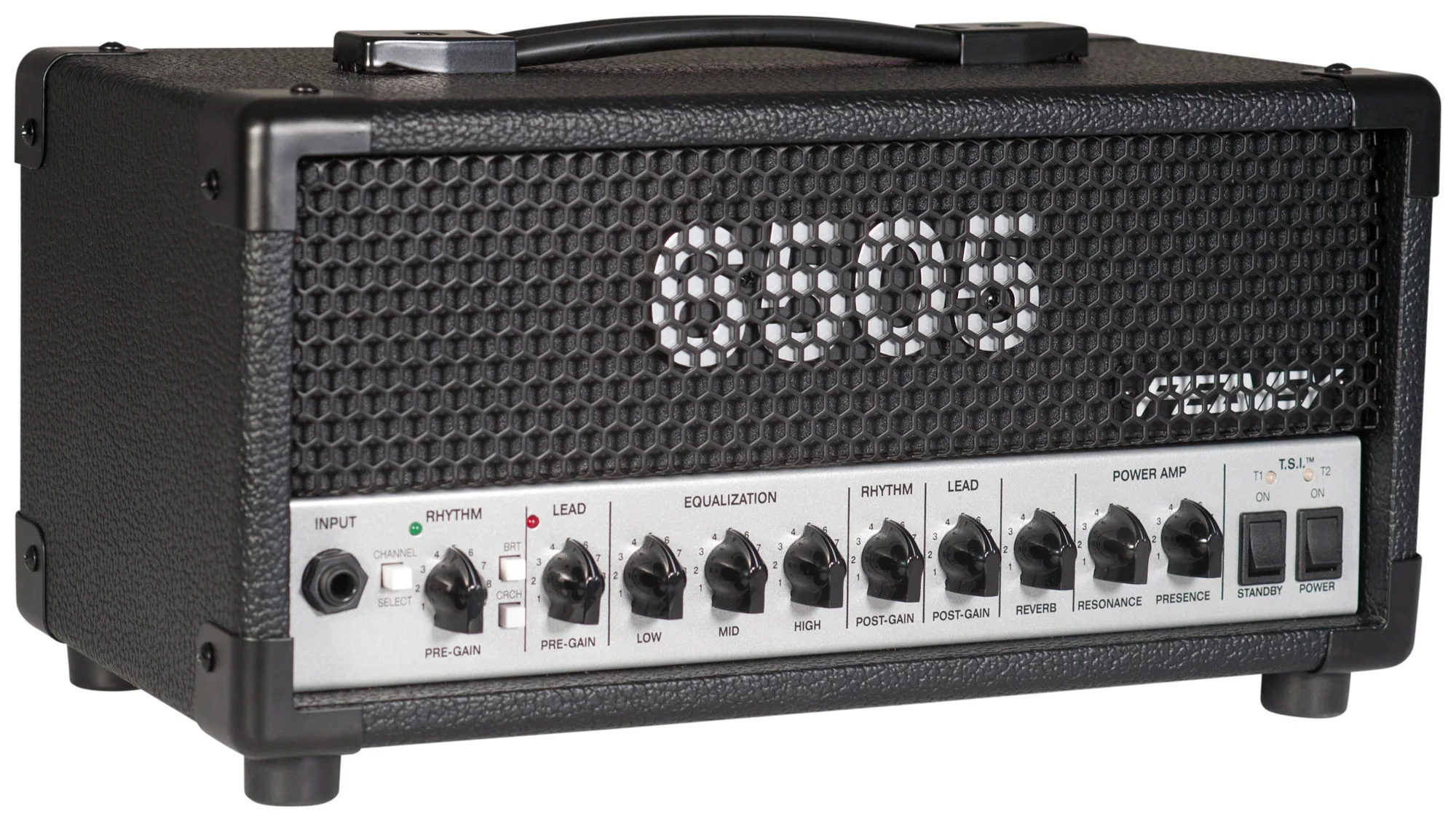

Peavey 6505-MH Tube Head

Tube amplifier head

The Peavey 6505-MH is a compact tube amp head delivering 20W RMS thanks to its two EL84 tubes and a tube preamp equipped with three 12AX7/ECC83 tubes. It offers two separate channels, Rhythm and Lead, with a 3-band EQ and built-in reverb, providing tonal versatility suitable for various styles.

• ✓ Adjustable power: 20W, 5W, 1W
• ✓ Two channels (Rhythm / Lead) with footswitch selection
• ✓ 3-band equalizer for precise sound control
• ✓ Built-in reverb with foot pedal control
• ✓ Multiple outputs: DI, headphones, USB
• ✓ Selectable impedance 8/16 Ohms
• ✓ Compact size and lightweight (8 kg)

Technical data

Model	6505-MH
Kind	Tube amplifier head
Power	20W RMS
Power lamps	2 x EL84
Preamp tubes	3 x 12AX7 / ECC83
Canals	2 (Rhythm / Lead)
Equalizer	3 strips
Reverberation	Integrated
Impedance	8 / 16 Ohms
Power selector	20W / 5W / 1W
Pedal control	Reverb and channel selection
Outings	DI, headphones, USB
Weight	8 kg
Dimensions (W x H x D)	35.60 x 18.50 x 19.70 cm

Uses & Benefits

• Ideal for guitarists looking for a compact and powerful amp head
• Suitable for various styles thanks to its two channels and 3-band equalizer
• Precise power adjustment for playing in an apartment or on stage
• Remote control via foot pedals for convenient live use
• Multiple outputs facilitate recording and connection to various equipment
• Reduced weight and dimensions for easy transport
