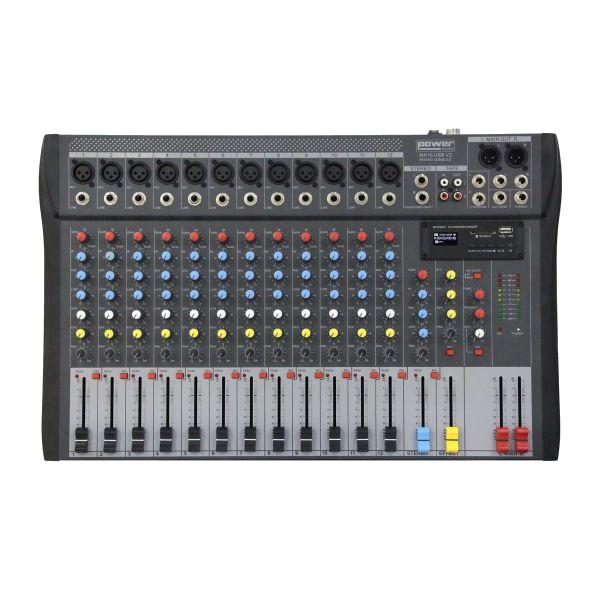

Power Acoustics MX16 USB V2 USB Mixer

Power Acoustics MX16 USB V2 USB Mixer

Technical characteristics:
- 12 XLR microphone inputs
- 12 asymmetrical 6.35 mm line inputs
- 2 symmetrical 6.35 mm line jack inputs
- RCA TAPE inputs/outputs
- XLR outputs x 2 and 6.35mm Jack x 2
- AUX send
- Control Room
- Very low noise preamplifier
- Adjustable Echo Type Effect
- Corrections 3 lanes per lane
- Clipping LED
- Linear volume faders per channel
- LED VU meters
- Helmet fitting
- TAPE input and output
- Frequency response: Mic/Line input to any output: +/
- 0.5 dB, 20 Hz to 20 kHz
- THD: Mic sensitivity
-30 dBu, +14 dBu @ Mix Output -0.007%
- Noise: Mic EIN input (maximum gain):
-128 dBu (source 150?)
- Aux, Mix and Master (@0 dB, gradual attenuation)
-
-85 dBu
- Channel separation: -96 dB
- Aux Send Pots Offness: -86 dB
- Input and output impedances: Mic input: 2.4 k?, Line input: 11 k?, and Stereo input: 100k?
- Input and output levels: Mic input: +17 dBu max, Line input: +30 dBu max, Stereo input: +30 dBu max, and Mix output: +20 dBu
- Headphone (@ 200?) 300 mW
- EQ (mono/stereo input): HF: 12 KHz +/
- 15 dB, MF: 140 Hz
- 3 KHz, +/
-15 dB, LF: 80 Hz +/
-15 dB
- Dimensions (H x W x D): 407 x 376 x 74 mm
- Weight: 6.7 Kg
