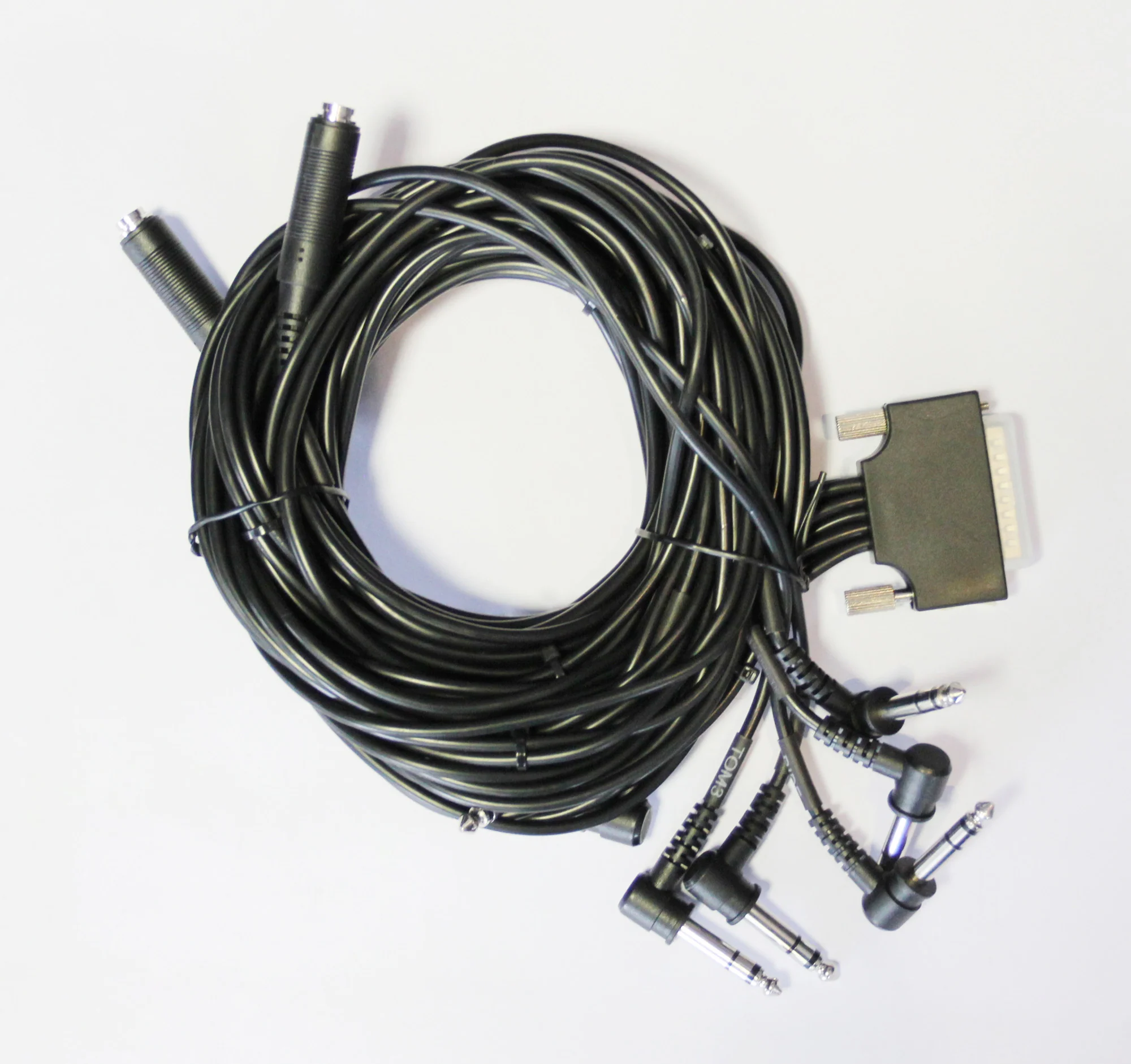

EFNOTE Multicable EFD-Multi-A5

Multicable

The Efnote EFD-MULTI-A5 is a multi-strand cable designed to facilitate the connection of EFNOTE 5 and 7 kits to the control module. It centralizes several connections via a DB25 connector to integrated jack cables, thus optimizing organization and speed of installation.

• ✓ DB25 connection to EFNOTE module
• ✓ 6.3 mm mono jack cables for kick, snare, tom 1, tom 3, crash 1, ride and ride cup
• ✓ 6.3 mm female jack for hi-hat and tom 2, allowing a female-to-female connection
• ✓ Dedicated 5-pin DIN connector for the hi-hat controller
• ✓ Compatible with EFNOTE 5 and 7 kits
• ✓ Replaces multiple individual cables for better organization

Technical data

Cable type	Multi-strand cable
Main connector	DB25 to EFNOTE module
Jack cables	6.3 mm mono for kick, snare, tom 1, tom 3, crash 1, ride, ride cup
Female Jack	6.3 mm for hi-hat and tom 2 (female to female connection)
hi-hat connector	5-pin DIN connector for hi-hat controller
Compatibility	EFNOTE Kits 5 and 7
Function	Cable grouping for simplification and organization

Uses & Benefits

• Quick and easy installation of EFNOTE 5 and 7 kits
• Reduction in the number of individual cables
• Improved organization and space saving
• Reliable connection thanks to specialized connectors
• Facilitates the management of electronic battery components
