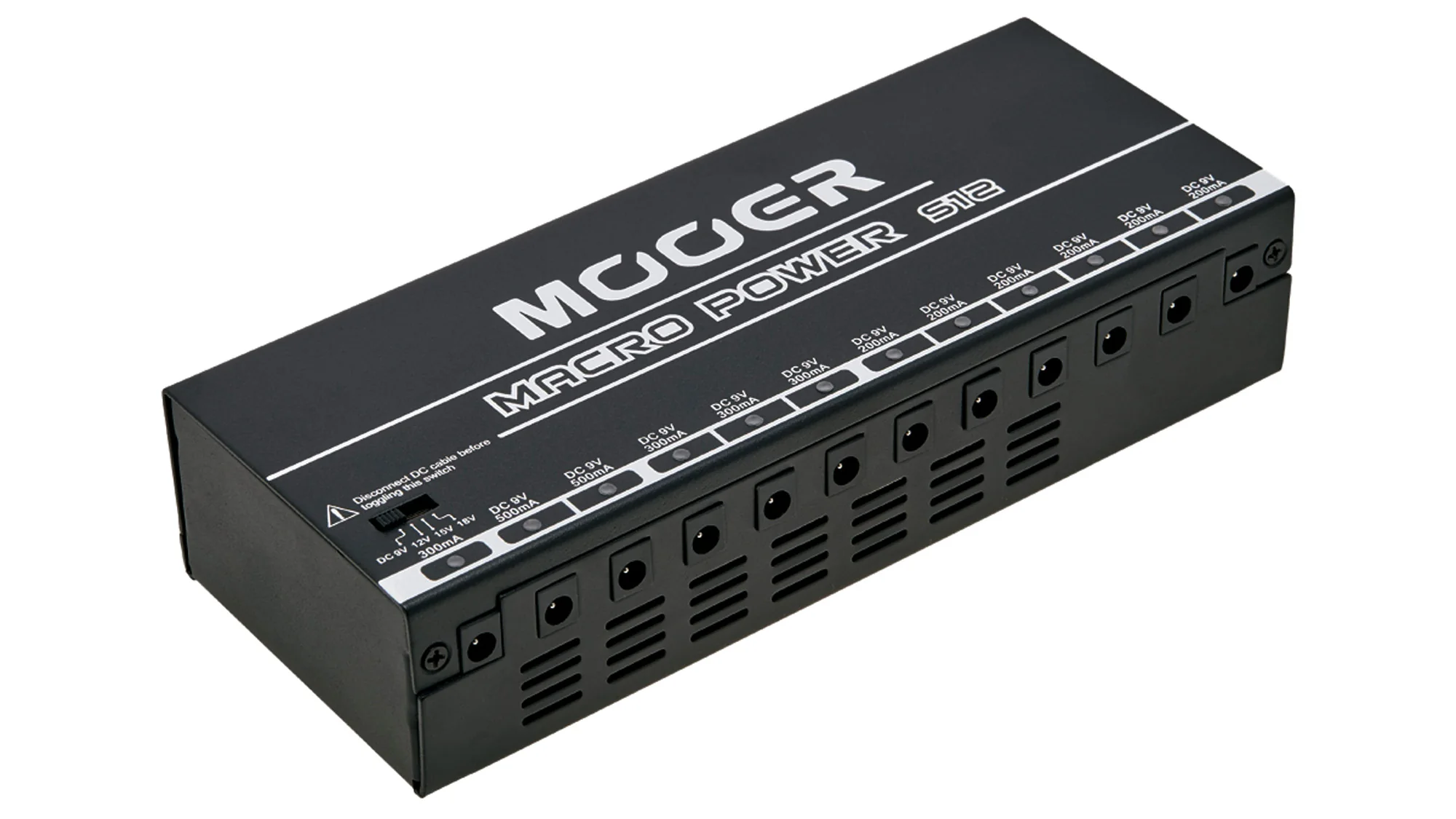

Mooer Macro Power S12

Power supply / AC adapter

The MACRO POWER S12 power supply is a professional solution designed to power multiple effects pedals simultaneously. It offers stable and secure power distribution thanks to its various outputs and integrated protections, all housed in a robust metal casing.

• ✓ 6 x 9V outputs providing 200mA each
• ✓ 3 x 9V outputs with 300mA each
• ✓ 2 x 9V outputs delivering 500mA each
• ✓ 1 selectable voltage output (9/12/15/18V) with 300 mA
• ✓ Dual independent toroidal transformers
• ✓ Built-in surge protection
• ✓ Compact and robust metal case, supplied with cables and Velcro strap

Technical data

Model	MACRO POWER S12
9V (200mA) outputs	6
9V (300mA) outputs	3
9V (500mA) outputs	2
Selectable voltage output	9/12/15/18V, 300 mA
Transformers	2 independent toroidals
Protection	Against power surges
Mains power supply	220/110V switch
Housing	Metal, black finish
Dimensions	225 x 88 x 50 mm
Weight	1.82 kg
Accessories included	Cables and Velcro strap

Uses & Benefits

• Reliable power supply for multiple effects pedals simultaneously
• Outputs of varying intensities adapted to different needs
• Integrated protection to safeguard equipment against power surges
• Sturdy metal casing for long-lasting use
• Easy installation thanks to the included cables and Velcro strip
• Adaptable to different mains voltages (110/220V)
